Digital Twin - Filters

Digital Twin - Filters

Useful Examples

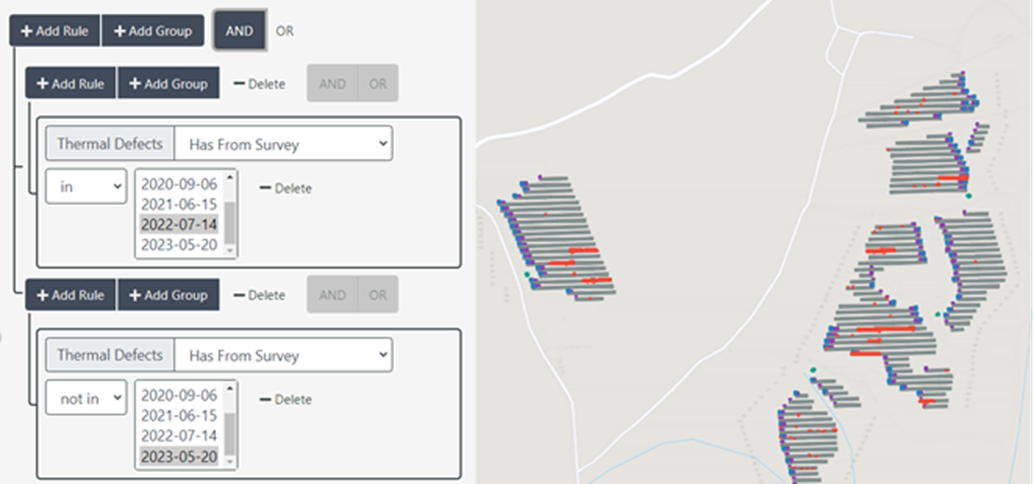

1.    Locate thermal anomalies resolved.



Anomalies appear in a given year, absent in subsequent analysis.




2.   Locate new thermal anomalies



Anomalies identified in a recent year, not observed in previous reports.

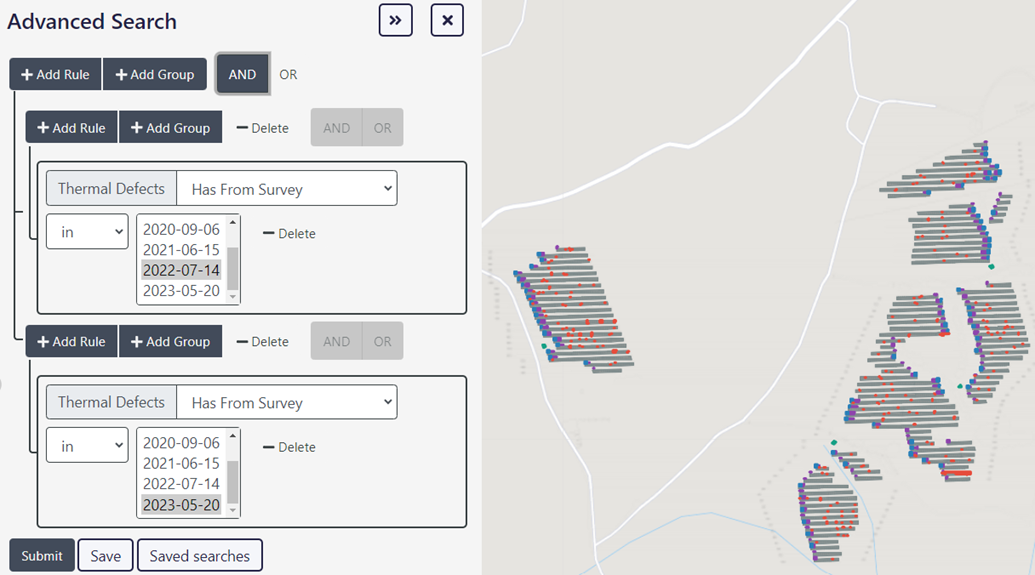

3.    Locate persisting thermal anomalies


 Anomalies detected in a specific year, continuing through to subsequent years.



4.   Locate modules with a thermal anomaly and a visual damage




Modules with a thermal anomaly and visual evidence attached.





5.    Locate modules with thermal defects associated to a singular batch



If serial numbers from your modules have been scanned, you can potentially identify batches and trends with a corresponding anomaly found from your thermal reports.





6.    Locate modules with thermal anomalies, belonging to different electrical zones.

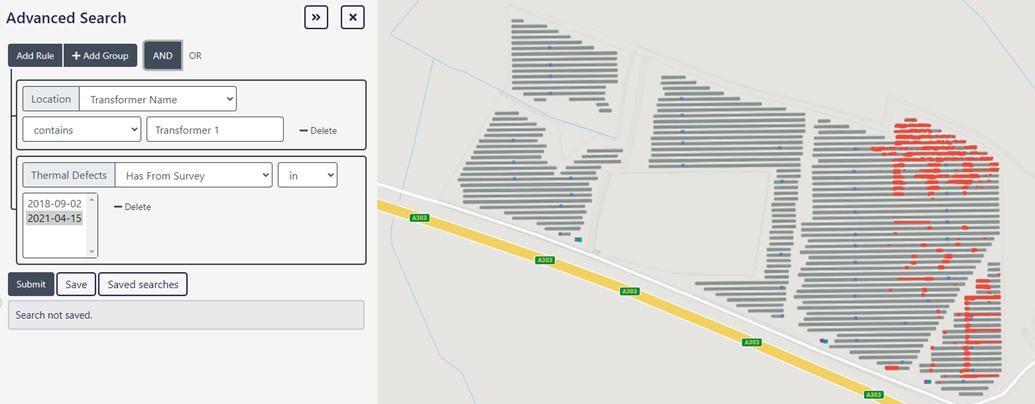

Anomalies contained on a transformer level

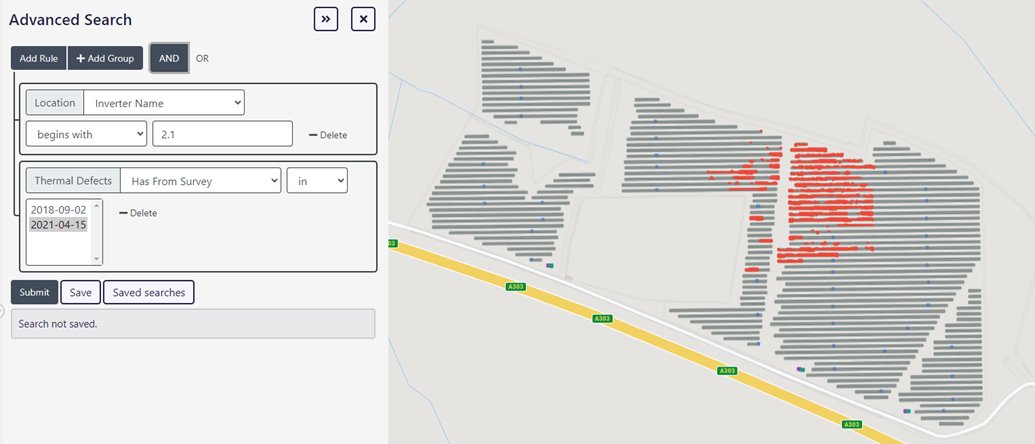

 Anomalies contained on an inverter level

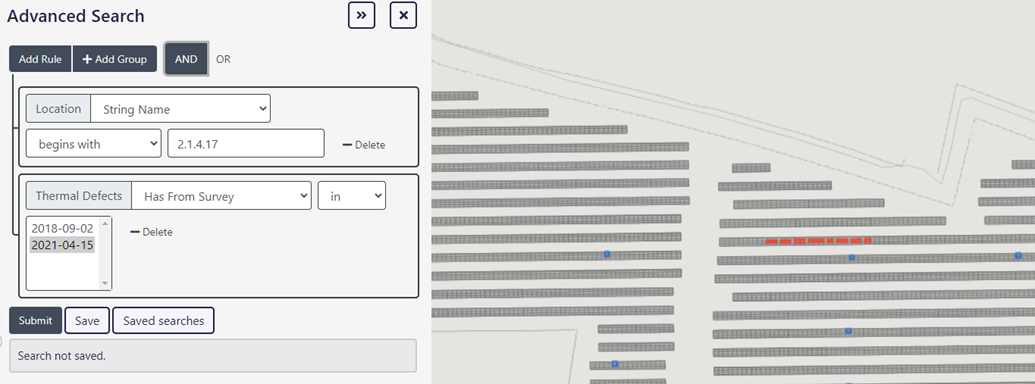

Anomalies contained on a string level




7.    Confirm the Module on-site distribution

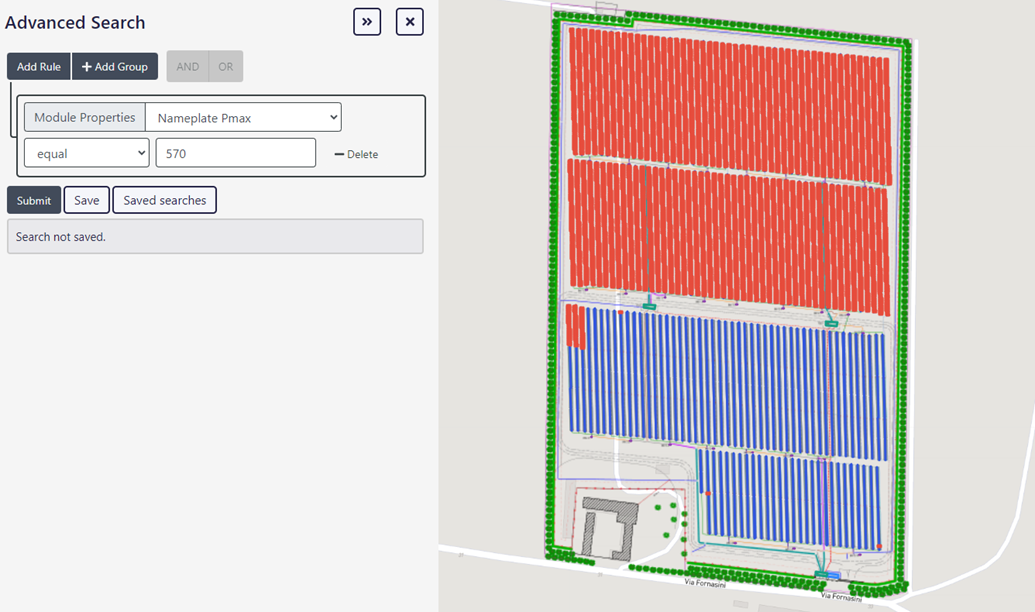

Modules with a specific Nameplate Wp capacity “Nameplate Pmax"

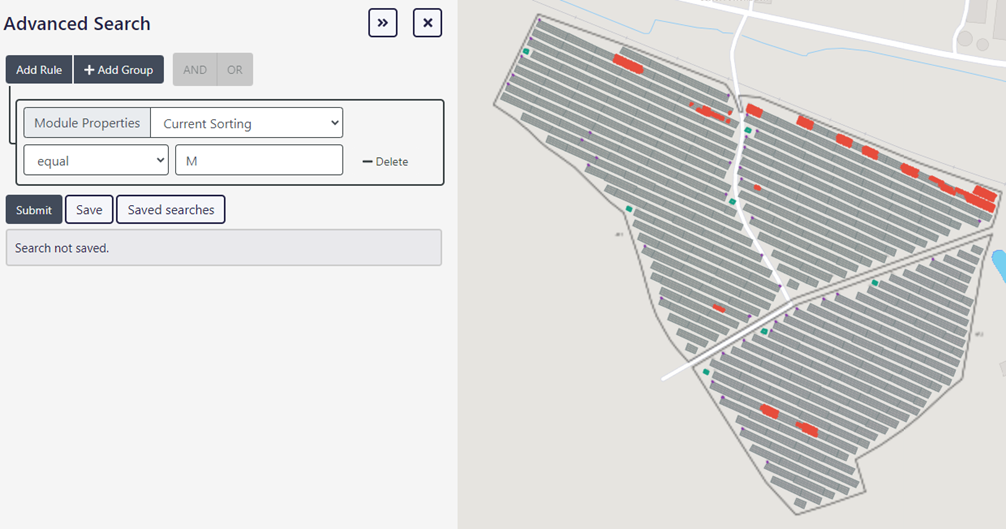

Modules with a specific Current Sorting value

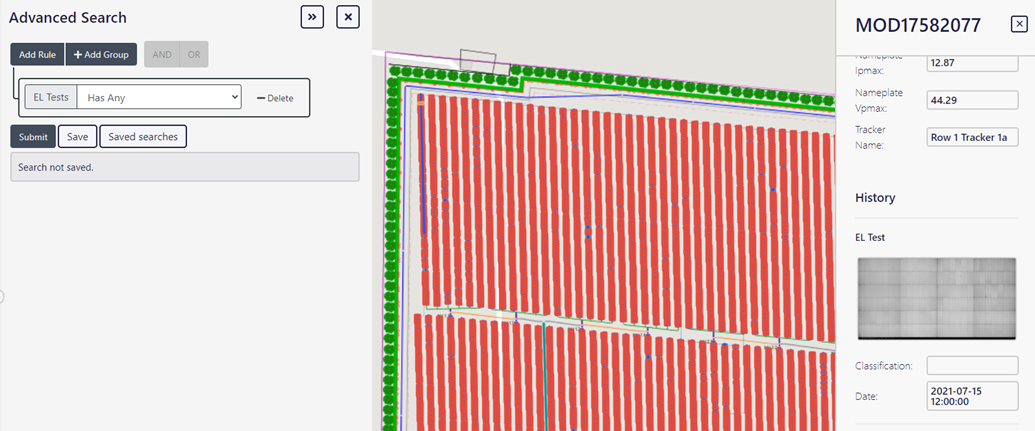

8.    Locate modules with Factory EL Test



Modules with an EL test on record

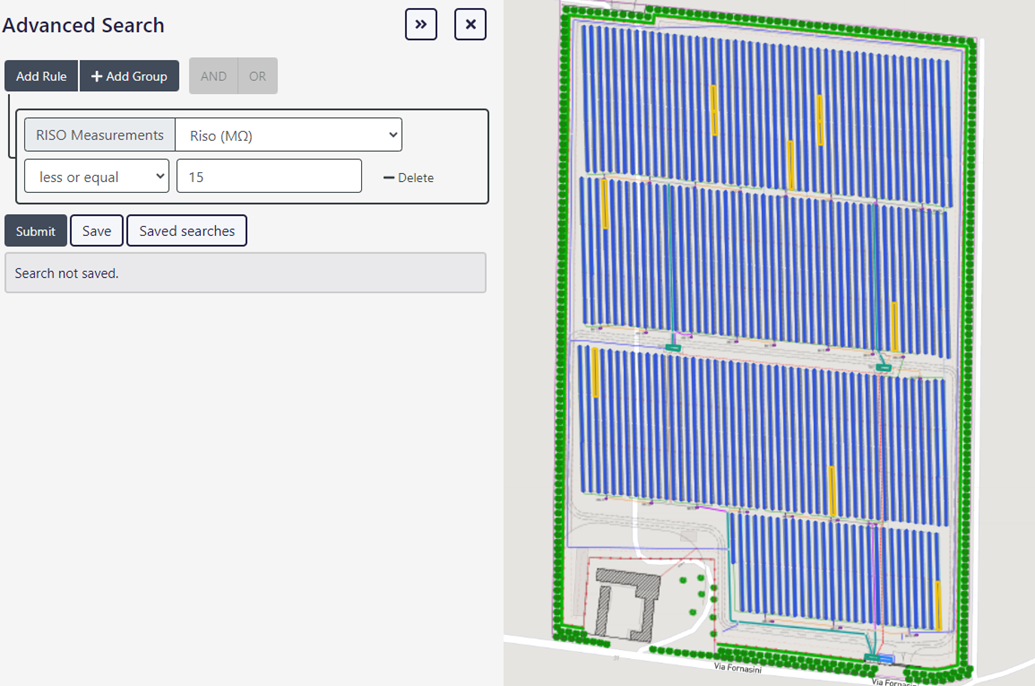

9.   Locate underperforming strings.


Any string with a RISO test under 15 M ohm



10.    Locate modules from a specific delivery.



Modules originating from a specific delivery container

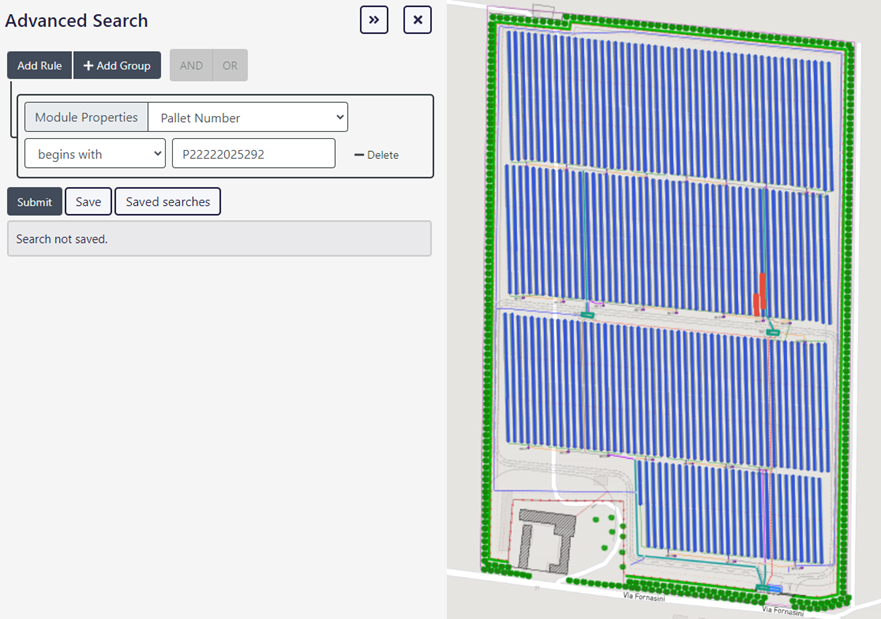

Modules originating from a specific delivery pallet
