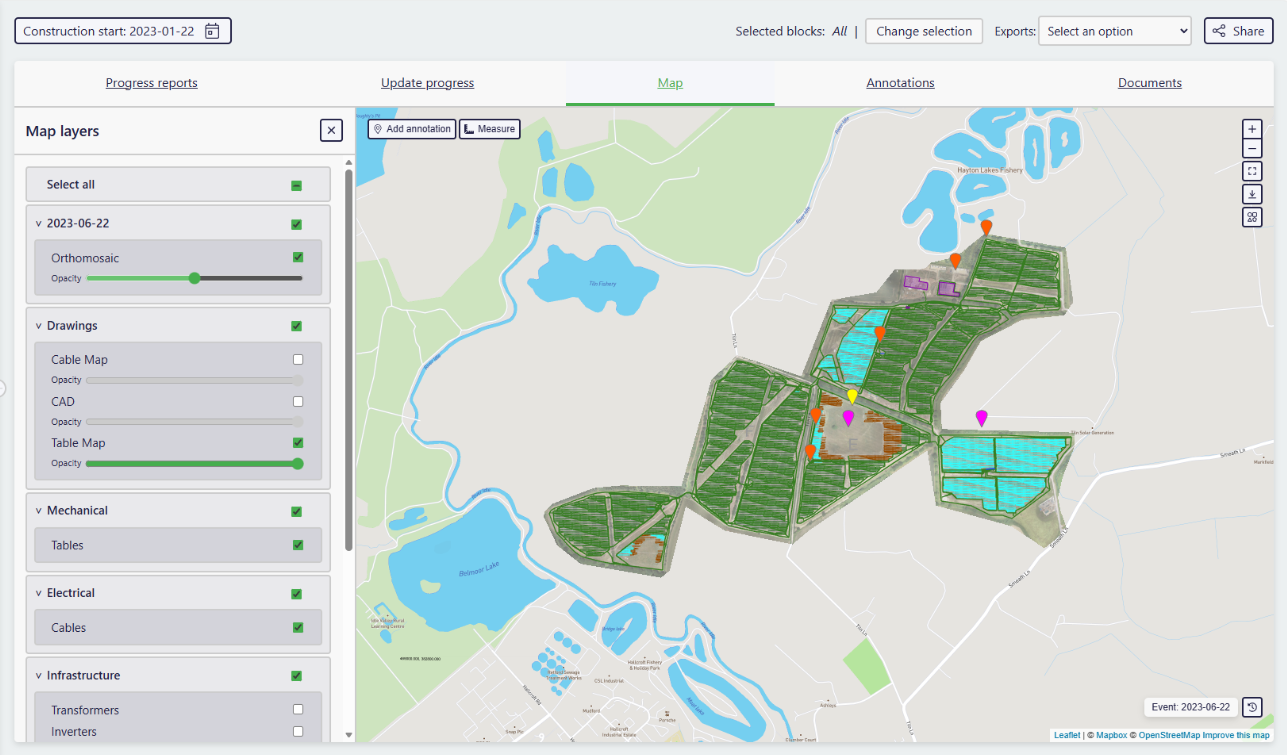

The map layers, located at the left-hand side, can be turned on/off individually or per group. This way the user can make different comparisons among different layers or have a look an isolated one. Below an explanation of each group of map layers:
The “stitched” imagery taken from the drone showing the state of the PV plant on the day of the report.
This layer places the “Design” CAD on the map to ensure that construction work is being completed according to plan. Any modified and updated CAD can be uploaded to the platform, as shown in the picture. Drawings can be uploaded as many as possible, with the possibility to separate them however the user wants to.
These layers provide the possibility to isolate every main element from the PV plant for a better analysis, these ones are:
This layer shows the annotations the user has created on the map. Annotations are used to highlight interesting points found on the map, which can later be shared with site managers, so that the spotted elements can be fixed or verified before the next report. The different colors represent their category (Quality, Safety, Status or Other). Creation of annotations is explained in the next interaction unit, “Action tools”.
Action tools help the user to operate and work with each of the scanned milestone views of the PV plant through the whole construction period.
Tool to zoom in or out within the map, it can be also done by scrolling up and down with the mouse.
Full screen tool allows to have the map view across the whole screen for a better visualization.
This tool enables the user to measure distance or areas in the map. Users can use it to check the pitch distance between trackers, distance to the fence or even to calculate the transformer station area among others.

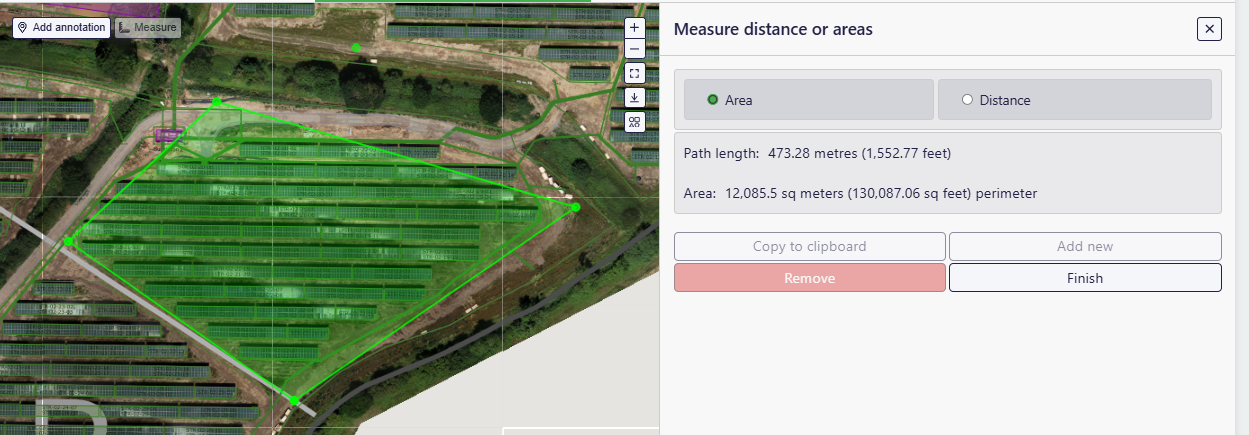

By clicking on the icon, a window will be displayed from the right, giving the possibility to choose between Area or Distance.
Measurements can be copied to the clipboard by clicking on Copy
to Clipboard bottom. It is useful as it can be later included in the
description of the annotation. It is also possible to remove any undesired
element by clicking on it and pressing the Remove bottom.
As previously mentioned, annotations are used to highlight interesting
points found on the map. Click on it to display the window for creating the
annotation. See picture below.
A square will show up at the center of the map covering an
area. The map can be dragged with the mouse to fit in the square, even zoom it
in and out to increase/decrease the area covered. To create the annotation, the
first thing to do is to select exactly the desired area to spot. After that, Capture
Image bottom must be clicked and this area will be captured as a snapshot.
Next thing to do is to write
down a description about what has been spotted and click on the shape on the
map to link it to this annotation.
Below the component section the category of the annotation can be selected; options are Quality, Safety, Status or Other. On top of that, it is then possible to select whether the annotation should be visible to your organization only, or to all the organizations that have access to this report.
At the end of the window, there are three options, either Add
to tasks, to Cancel or to Save the annotation.
In case save bottom is pressed,
the annotation will be stored in the “Annotation” module.
